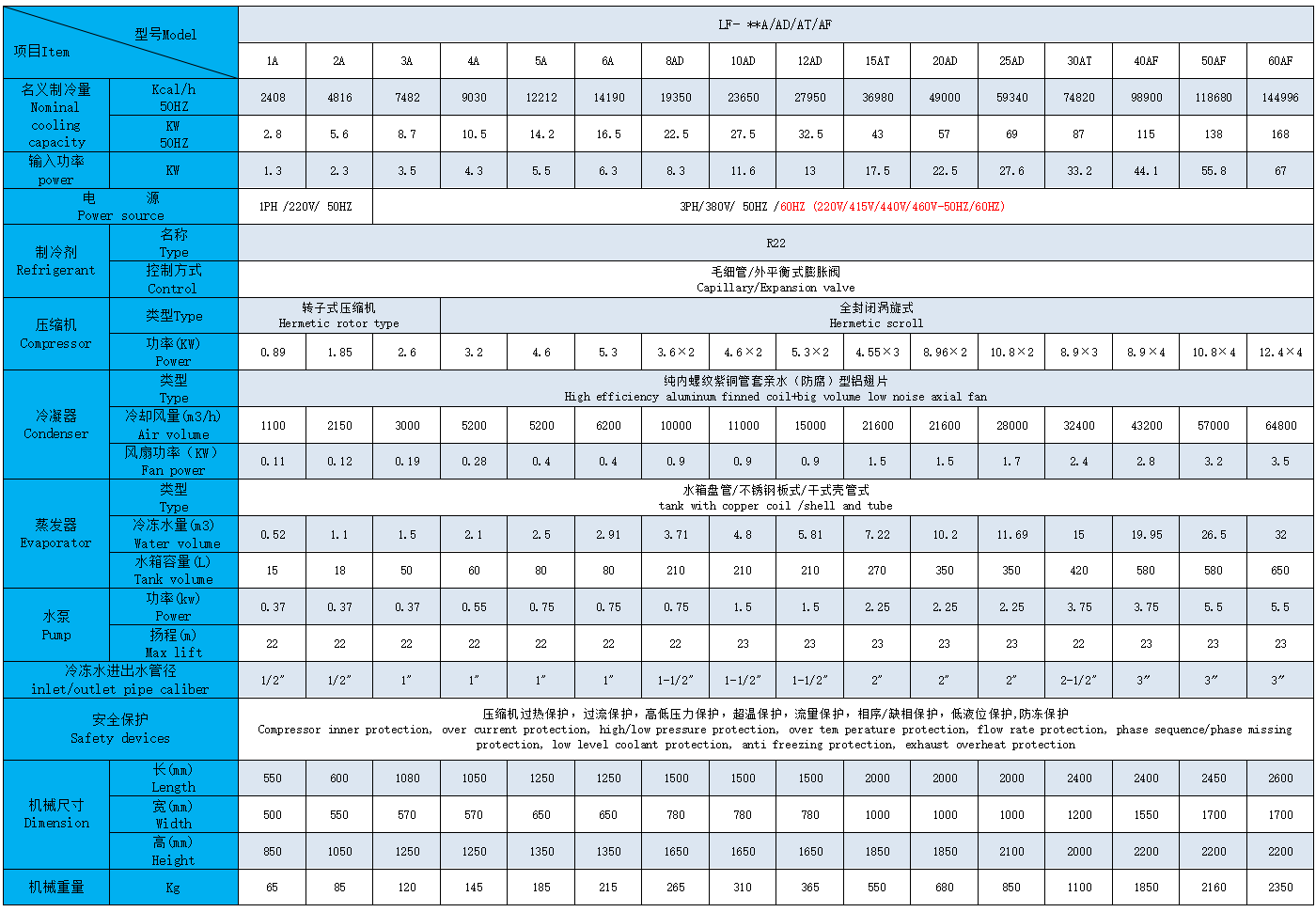

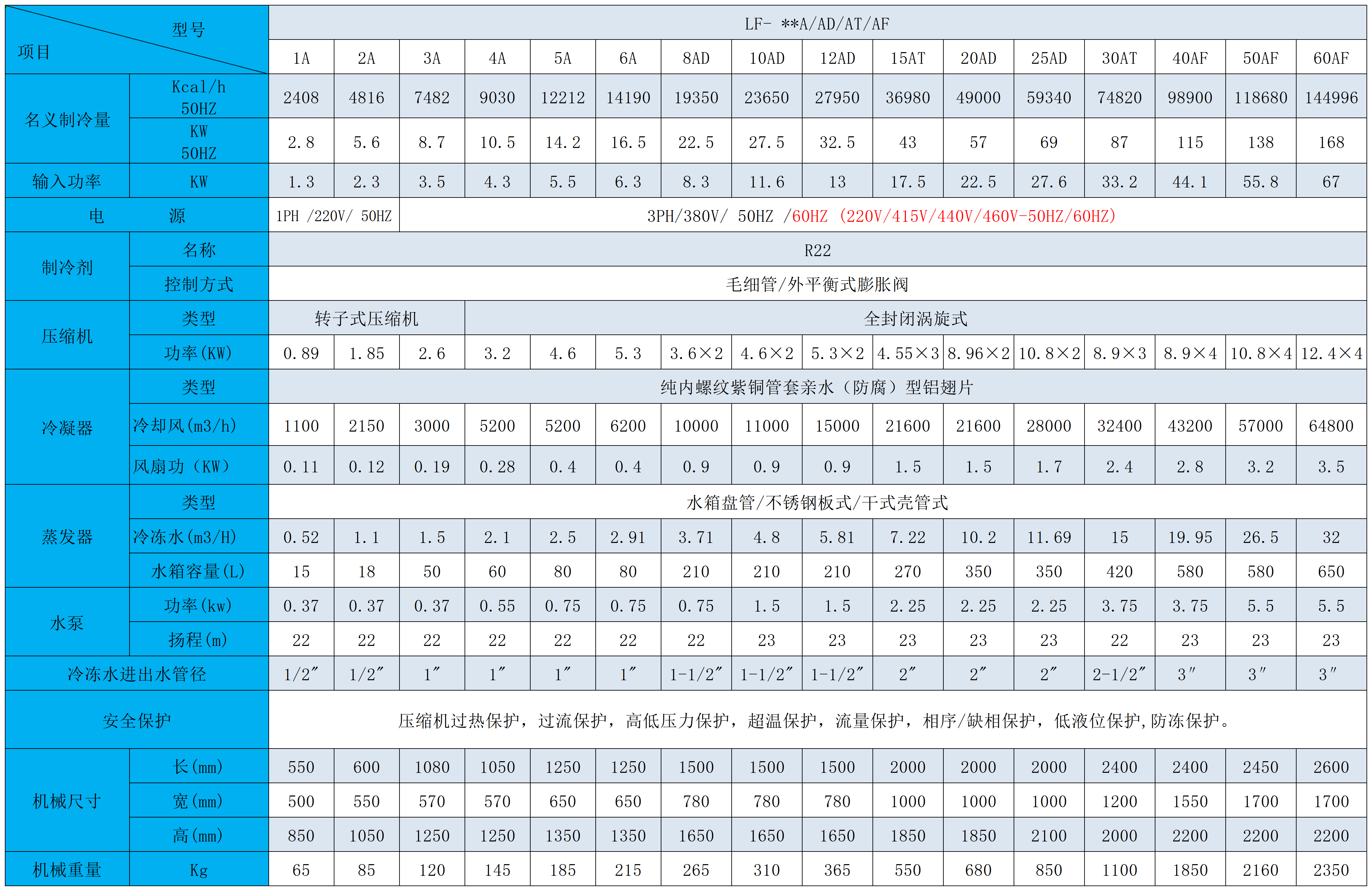

风冷式冷水机参数表
Parameter table of air-cooled chiller
以上数据依据以下工况得出
The above specifications are according to the following design conditions:
1.冷冻水进出水温度12℃/17℃.冷却进出风温度30℃/35℃
Chilled water inlet/outlet temperature 12oC/17oC.Cooling air inlet/outlet temperature 30oC/35oC
2工作范围：冷冻水控温范围5oC至35oC 冷冻水进出水温差：3℃至8℃。
Temperature control range of chilled water。Cooling air inlet/outlet temperature 30oC/38oC.
3.在冷凝环境温度不高于38℃使用 。
It is better to run the chiller while the ambient temperature at or below 38℃.
我们保留修改上述尺寸或参数的权利，恕不另行通知。
We reserve the right to modify the above dimensions or parameters without further notice.
